5-Star rating & 6 airbags aren't enough: What really keeps your family safe on Malaysian roads?

When shopping for a new family car in Malaysia, most of us follow a familiar routine at the showroom. We check the brochure, count the number of airbags, look for Advanced Driver Assistance Systems (ADAS) like Autonomous Emergency Braking (AEB) and make sure there’s a five-star crash rating logo stamped on the specification sheet.

Whether it is the daily traffic crawl along the LDP, navigating torrential monsoon downpours on the PLUS highway or packing the trunk for a long balik kampung drive, we want peace of mind knowing our loved ones are well-protected.

However, there is a fundamental part of vehicle safety that brochures rarely detail: what happens beneath the sheet metal when physics takes over?

Active vs passive safety: Two sides of the same coin

In recent years, vehicle marketing has heavily focused on crash prevention. Features like Autonomous Emergency Braking (AEB) and Lane Keeping Assist (LKA) once reserved for luxury vehicles are now standard on many mainstream cars.

These active safety systems act as a vigilant co-driver, intervening within specific parameters to help avoid accidents. But active safety systems have operational limits. If a collision becomes unavoidable, passive safety takes control.

At that critical millisecond the body structure, seatbelts, airbags and head restraints must work in perfect synchronization to absorb impact forces and protect the cabin. While seatbelts and airbags cushion the occupants, their effectiveness ultimately depends on one invisible foundation: how structural crash forces are managed by the car's body frame.

The invisible steel shell: Materials and manufacturing matter

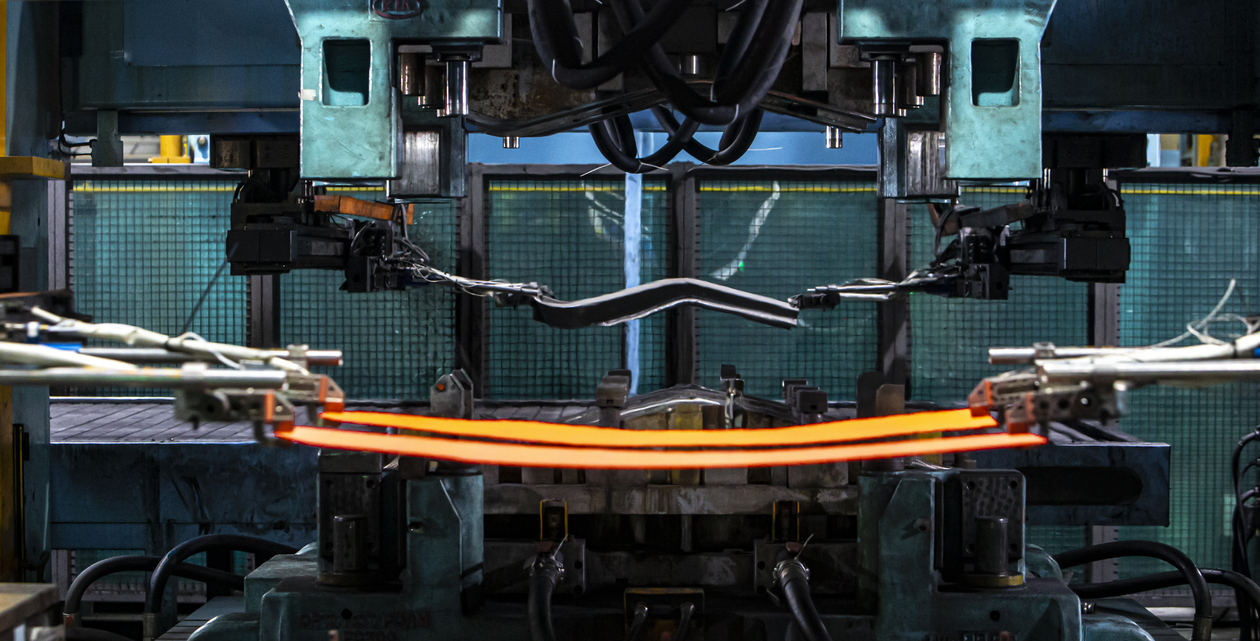

High-strength hot-stamped components for Hyundai vehicles at Hyundai Steel’s Yesan plant

To protect passengers during a crash, a vehicle’s frame is engineered with two contrasting jobs:

1. Crumple Zones: Specific areas front and rear designed to deform in a controlled manner to absorb impact energy.
2. Safety Cage: Reinforced structural zones engineered to resist deformation and preserve passenger space.

To achieve this balance without making the vehicle excessively heavy, manufacturers rely on advanced steel grades and specialised manufacturing techniques. Ultra-High-Strength Steel (UHSS) and hot-stamped components are strategically concentrated around critical areas like the center pillars (B-pillars), side sills and roof rails.

For instance, within the Hyundai Motor Group vehicle engineers collaborate directly with its steelmaking affiliate Hyundai Steel to develop specialized steel grades tailored for specific structural demands.

Two advanced manufacturing techniques play a key role here:

• Tailor-Welded Blanks (TWB): Laser-welding steel sheets of varying grades and thicknesses together before forming. This puts high strength exactly where crash forces concentrate while reducing unnecessary weight in other areas.
• Hot Stamping: Steel is heated above 900°C, stamped in a die and rapidly cooled. This process creates ultra-high-strength components for critical passenger compartment reinforcements.

Behind the scenes: High-Tech crash testing

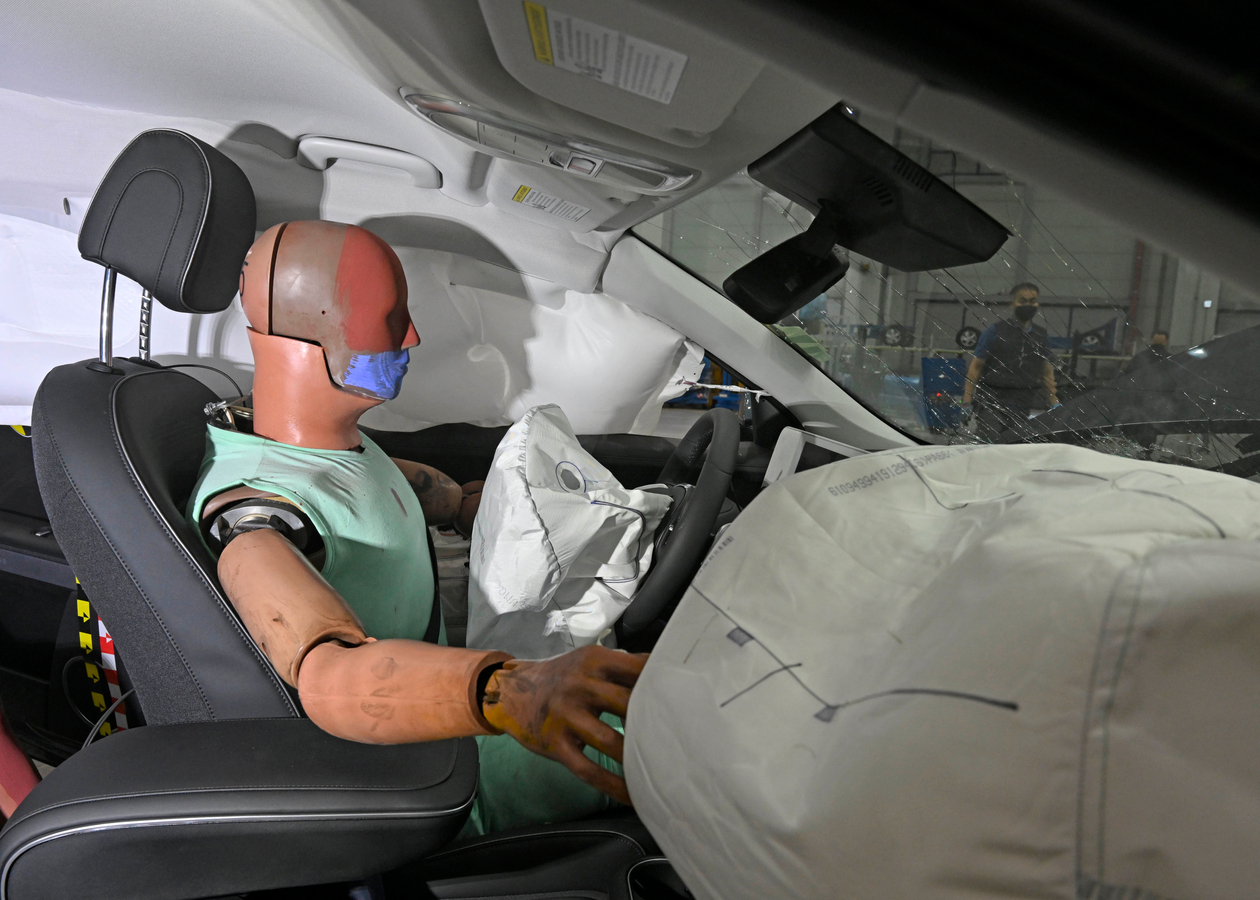

THOR crash dummies help engineers assess how occupants may respond to crash forces

Before any car enters local showrooms, thousands of hours are spent analyzing crash forces at R&D facilities such as Hyundai’s Namyang R&D Centre in South Korea.

To record precise biomechanical data during impact tests, engineers utilize advanced crash test dummies like the THOR dummy. Equipped with 157 high-precision sensors, THOR closely mimics human anatomical responses. The data collected allows engineers to fine-tune structural crumple paths and airbag deployment sequences with one primary goal: minimizing physical trauma to human occupants.

Case study: How it works in the Hyundai SANTA FE

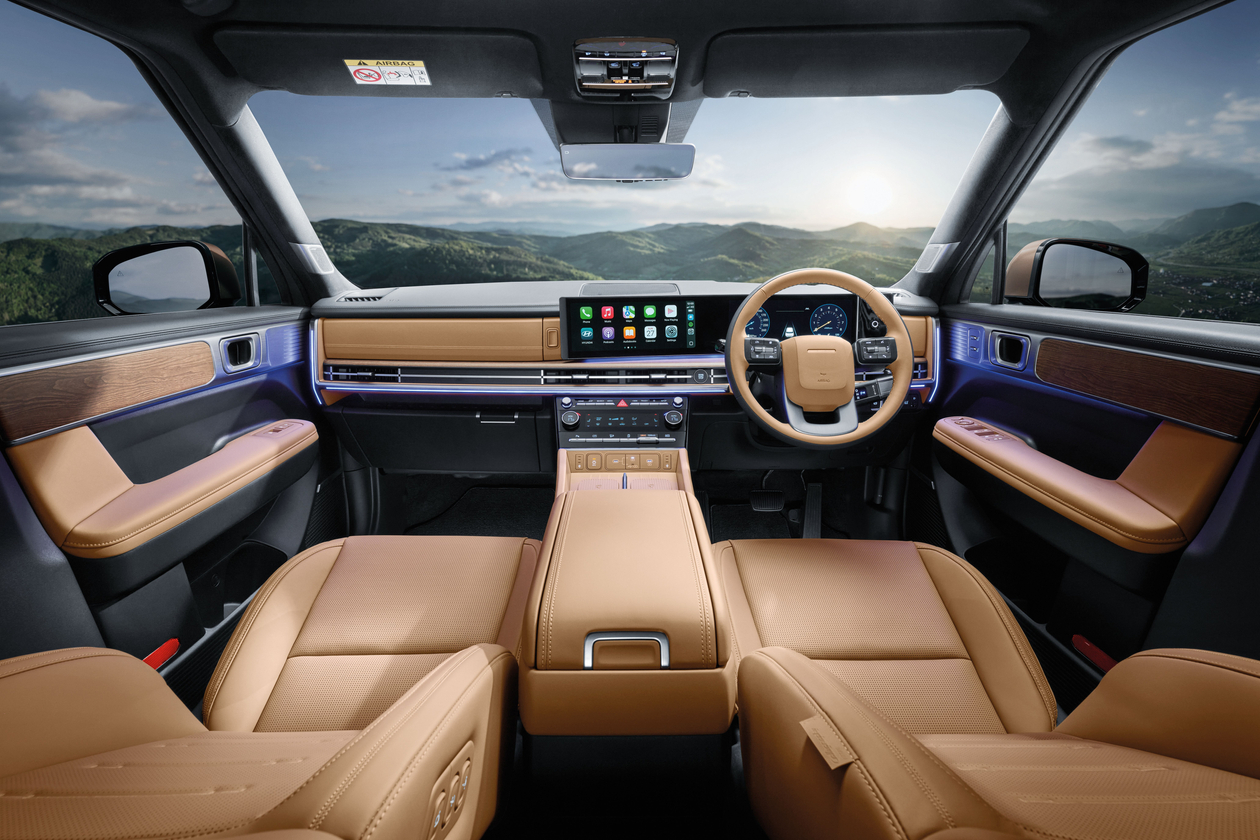

The SANTA FE’s passenger cabin

To see how these engineering principles translate into a real-world family SUV, look at the latest Hyundai SANTA FE:

• Stronger Steel Shell: Uses 3rd-generation steel combining higher formability with extreme strength. The proportion of hot-stamped steel increased from 13.2% in the previous model to 15.3%, raising average body tensile strength by 4.5% (from 67 to 70 kgf/mm²).
• Frontal Impact Protection: Features a subframe designed to distribute impact forces across the chassis, a multi-skeletal engine compartment to dissipate energy and a lightweight aluminium bumper beam to absorb impact.
• Side Impact Protection: Because side collisions offer very little clearance between the door and the passenger the cabin is reinforced with ultra-stiff seat cross-members, intermediate structural reinforcements, an additional bulkhead and thicker hot-stamped pillar sections.
• Proven Credentials: The model earned a 5-star ANCAP rating (2024) and was awarded the IIHS TOP SAFETY PICK+ 2026 title.

Showroom reality check: 6 practical safety tips for Malaysian buyers

The next time you visit a car showroom, look beyond the feature count on the flyer:

1. Test for Your Family First: Ensure seatbelts and head restraints adjust comfortably for all family members and test whether your ISOFIX child seats fit securely.
2. Look Beyond the Star Rating: Download the detailed crash test report from bodies like ASEAN NCAP or ANCAP. Look at individual adult and child occupant protection scores, not just the overall star rating.
3. Verify Local Specifications: Crash test ratings often apply to specific market variants. Confirm that the crash rating applies to the exact specification sold in Malaysia.
4. Check Variant-Specific Equipment: Safety features (such as curtain airbag coverage or specific ADAS functions) can vary across trim levels. Verify what is included in your exact chosen variant.
5. Understand ADAS Operational Limits: Ask the sales representative for a practical demonstration and read the owner's manual to understand when systems like AEB operate and when does the weather or driving conditions limit them.
6. Maintain the Safety System: A car’s safety shell is a complete system. Keeping up with regular servicing and addressing warning lights or structural repairs immediately are integral to safety.

Final thoughts

True vehicle safety isn’t defined by a single feature, a catchy acronym or a brochure checklist. It’s an engineered ecosystem where structural steel, smart electronics, precise manufacturing and responsible driving come together to protect what matters most.
